Manti is the AI workstation for
hardware and robotics engineering.

Try for free today!

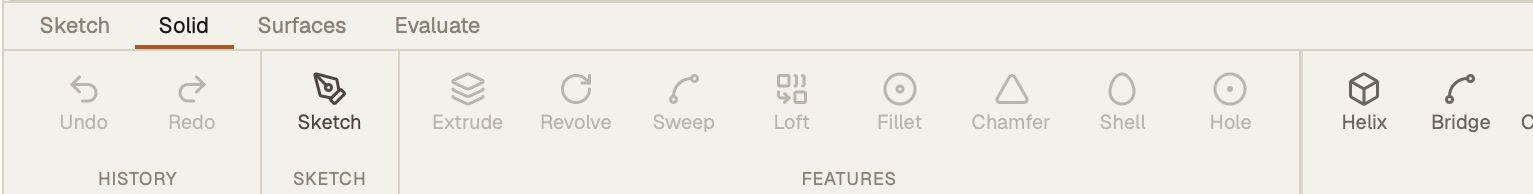

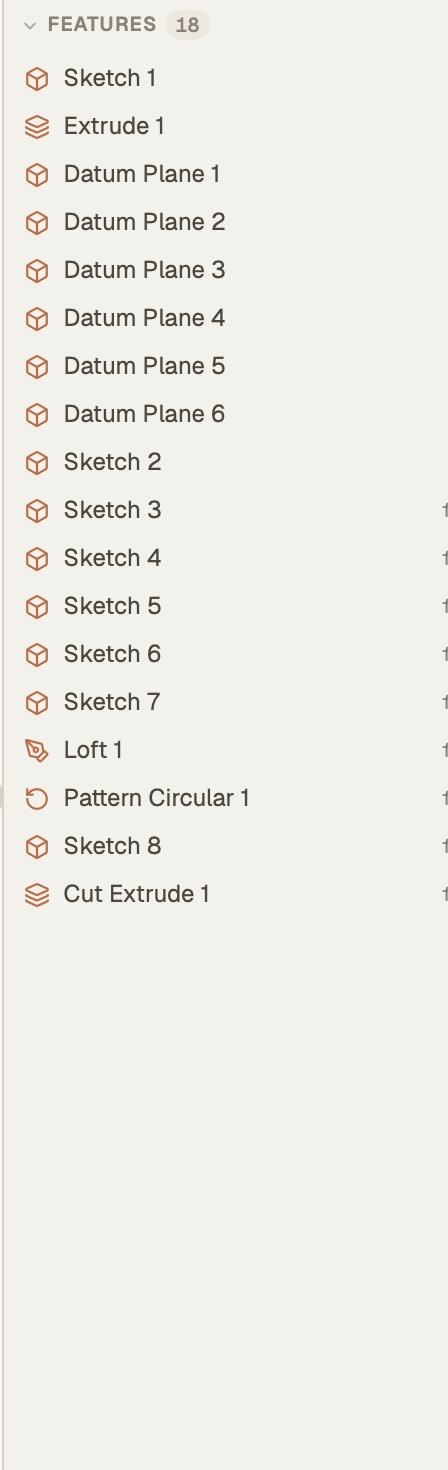

Manti Desktop: the copilot lofts a 13-inch propeller with tool cards and timings, a live curvature check, and a todo list that separates claimed from verified, while the canvas shows the finished propeller turning in the MantiCAD part editor with its toolbar and feature tree. Backdrop: a painted Boston reflecting pool at sunset.

Plugins

Six disciplines in one app: CAD, PCB, CFD, FEA, robotics training and ROS 2, all working on the same project files.

Install each engine once for this machine, then enable it per project. No terminal, no manual downloads.

OPENFOAM® and OpenCFD® are trade marks of OpenCFD Limited; this offering is not approved or endorsed by OpenCFD Limited.

CAD · Included

Full CAD: parts and assemblies.

Parametric modeling in the native viewport: sketch, loft, assemble; interference and mass measured by the kernel, not eyeballed.

Sun–planet is essentially clean (check_gear_mesh PASS, Lewis 37 MPa vs operator 327 MPa, margin 5.89). Two more clashes: housing through-bore vs the Ø24 sun boss (3023 mm³), and pins still nick the pocket floor (151 mm³).

Acetal fails this load (Lewis FAIL at a 1/3-tensile derate). Theoretical backlash is zero — running clearance has to come from tooth thinning, not center distance.

Sizing receipts are in docs/planetary-6to1-sizing.md. Next fix is the ring profile; say if you want that first or the housing bore.

i. Think it is missing a lid and a bearing for the output but this looks good.

Ask Manti
+ Copilot ⌄ Max ⌄ ↑
gearbox-6to1.mantiasb ×
MANTI-CAD

PCB · EDA

Full EDA: schematic to board.

Bundled KiCad and ngspice do the real work: capture, layout, DRC and SPICE, every rule check landing as a verdict card, not a log line.

Check 6 claims a 5.0 V ±2% fixed-accuracy rail while the schematic wires the part as adjustable. Check 9’s ILIM equation constant (6400) is 10× off the DRV8871 datasheet’s 64,000.

#capture-the-schematic-power-mcu-sensors-lidar-dr — verdict independent review

Group verdict — Independent review: iterate (88% confidence). Full discussion in #schematic-design (3 tasks reviewed together).

#electrical-review-failure-injection-walk-of-the- — verdict independent review

Group verdict — Independent review: iterate (88% confidence). Full discussion in #schematic-design (3 tasks reviewed together).

Ask Manti
+ Copilot ⌄ Max ⌄ ↑
board.kicad_pro ×

CFD · Analysis

Full CFD: solve and see the flow.

OpenFOAM® runs on your machine, and fields land on the canvas as layers (surface, streamlines, slices) with the evidence beside the picture; a solve that did not converge says so.

Re-exporting the t = 1 wake GLB with an |U| isosurface at 0.6 of the measured max, keeping the same streamlines and mid-plane slices.

✓ Viz export field glb colormap=viridis, data_file=sim/cube-flow/cube-flow.foam, field=U, iso_field=U, isosurfaces=[0.788], out_glb=sim/cube-flow/U-wake.field.glb (0.8s)
✓ Opened on the Canvas: t=1 wake · iso |U|=0.788 + slices (0.0s)
✓ Sim look layers_hide=['surface'], layers_show=['streamlines', 'slice_0', 'slice_1', 'iso_0'], path=sim/cube-flow/U-wake.field.glb, view=iso (1.1s)

Re-exported sim/cube-flow/U-wake.field.glb at t = 1. Same streamlines and two mid-plane slices; added iso_0 at |U| = 0.788 m/s (0.6 × 1.313). Surface is hidden so you see the envelope. Because the walls are no-slip, |U| = 0.788 is a core-flow tube; the wake is the indentation where speed drops below that value.

Ask Manti
+ Copilot ⌄ Max ⌄ ↑
U-wake.field.glb ×

FEA · Analysis

Full FEA: mesh, solve, see the modes.

Bundled Gmsh and CalculiX: one snap per mode, deformation at true or exaggerated scale, legend and playback in the frame.

✓ Fea solve deck=sim/bracket/modal.inp, solver=ccx 2.23
✓ Opened on the Canvas: modes.field.glb (0.0s)
EVIDENCE ✓ pass

RECEIPT eligible

STATED GAPS (2) · field extremes absent — no parsed .dat at landing (fea_summary reads them on demand) · no renders recorded for this study yet — viz_render links them onto study.json

full card: .manti/sim/verdicts/fea-solve.simverdict.json

mode 1 · 657.8 Hz 1/6deformed by U ×0.02154 (auto) — exaggerated
Ask Manti
+ Copilot ⌄ Max ⌄ ↑
modes.field.glb ×

Pricing

Simple plans. Manti Desktop included in every one.

Free trial

A one-time allowance of usage credits to try Manti

$0 No monthly charge
  • Try Manti for free to get a feel for the platform before deciding whether to upgrade for continued access, more usage, and advanced models and features.
  • Ends when you use your credits or 30 days after you activate the trial, whichever comes first
  • Basic AI model: Flash Standard. Advanced models are available in paid plans
  • Keep your account when the trial ends. Subscribe to keep working

Your projects and content may be used to improve our AI models

Plus

For trying Manti on real work

$25 Per month, billed monthly
  • Manti Desktop on your machine, the whole product
  • Flash chat
  • A monthly allowance; upgrade to Pro or Max any time for more
  • 2 agent turns in parallel

Your projects and content may be used to improve our AI models

Pro

For engineers shipping every week

$100 Per month, billed monthly
  • Manti Desktop on your machine, the whole product
  • Pick the right model for each task, not one default
  • 4 agent turns in parallel to work several fronts
  • Buy extra usage when a build runs long

Your projects and content may be used to improve our AI models

Most popular

Max

For heavy daily use and long builds

$200 Per month, billed monthly

Everything in Pro, plus:

  • Our largest monthly allowance, for sustained work
  • 8 agent turns in parallel for big pushes
  • Headroom to leave long builds running overnight

Your projects and content may be used to improve our AI models

Enterprise

Custom contracts · 3-seat minimum.

$600 Per month for 3 seats
  • All data private, no training on your work
  • Pooled usage credits shared across every seat
  • Central admin and billing for the whole team

The AI workstation for hardware and robotics engineering.
